Inline PTFE Fluoropolymer Chemical Heater For Semiconductor Wet Processes

Fluoropolymer (PTFE) Inline Chemical Heater For Semiconductor Wet Processes

Now heat semiconductor process fluids up to 210°C!

PRODUCT DESCRIPTION

Unmatched in Semiconductor process fluid heating. Single chamber sizes up to 18kW

• FEATURES

  • 1. Ruggedly designed for the most demanding recirculation or single pass chemical applications.

  • 2. Able to achieve the highest temperature heating, up to 210°C.

  • 3. All fluoropolymer wetted surfaces for virtually any wet chemistry application. Thick walled chamber provides long

  • service life in the harshest high temperature applications.

  • 4. Long heater life for reduced cost of ownership (COO): Patented heater gas purge system continuously removes

  • 5. any chemical permeation and ensures long element life.

  • 6. Certification: CE, UL compliant, Semi S2

• SPECIFICATIONS

  • 1. Power 1,000 watts up to 18,000 watts

    2. Volts 200 to 600 , single or three phase (12kW and larger require three phase)

  • 3. Watt Density: 10 watts per square inch (1.5w/cm2)

  • 4. Fluid Connections: ¼-inch (6mm) to 1-inch (25mm); ½-inch (12mm) to 1-inch (25mm) Super 300 Type Pillar®

  • 5. Element Purge: Small amount of clean dry air (CDA) or N2 gas flows between the metal grounded element and the PTFE sheath. Purge minimizes potential for ionic contamination. Removes chemical permeation for longer service life

• OPTIONS AVAILABLE (CONSULT FACTORY)

  • Horizontally mounted configuration

  • PVDF high temperature mounting brackets

  • Custom configurations, connections and cable lengths

  • Capacitive style liquid level verification

APPLICATIONS

Semiconductor wafer cleaning

Solar/Photovoltaio Wafer Cleaning

Inline chemical heating

​​Safety Features

Liquid level sensor

• Ground wire options

• Over-temperature thermocouple

• Process thermocouple

Inline Chemical Heater	1 Bar	15 psig
Environmental Temperature	5-40°C 100 °C	212 °F
Maximum Pressure	<img data-original="/ueditor/themes/default/images/spacer.gif" alt="page3image53628096" width="0.479980" .479980'="" word_img="file:///page3image53628096" data-cke-saved-src="https://img.esadidasol.com/nimg/df/3e/567d6f16d040326c7a0ea29a4f41.jpg" src="https://img.esadidasol.com/nimg/df/3e/567d6f16d040326c7a0ea29a4f41.jpg" style="border: 1px solid rgb(221, 221, 221); vertical-align: top; background-image: url(&quot;http://www.preciseheater.com/ueditor/themes/default/images/word.gif&quot;); background-position: center center; background-repeat: no-repeat no-repeat;"> 5.5 Bar	80 psig
Minimum Flow Rate	2 LPM	.53 GPM
ICB — 12 Mo Warranty
Maximum Fluid Temperature	200 °C	392 °F
Maximum Pressure	3.1 Bar	45 psig

•

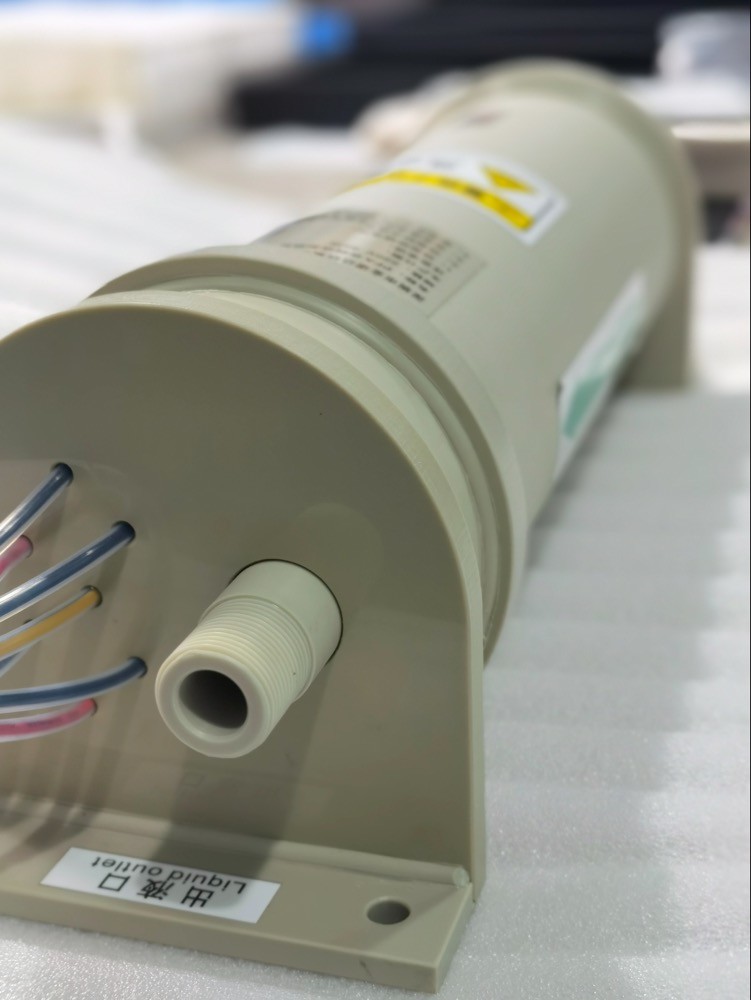

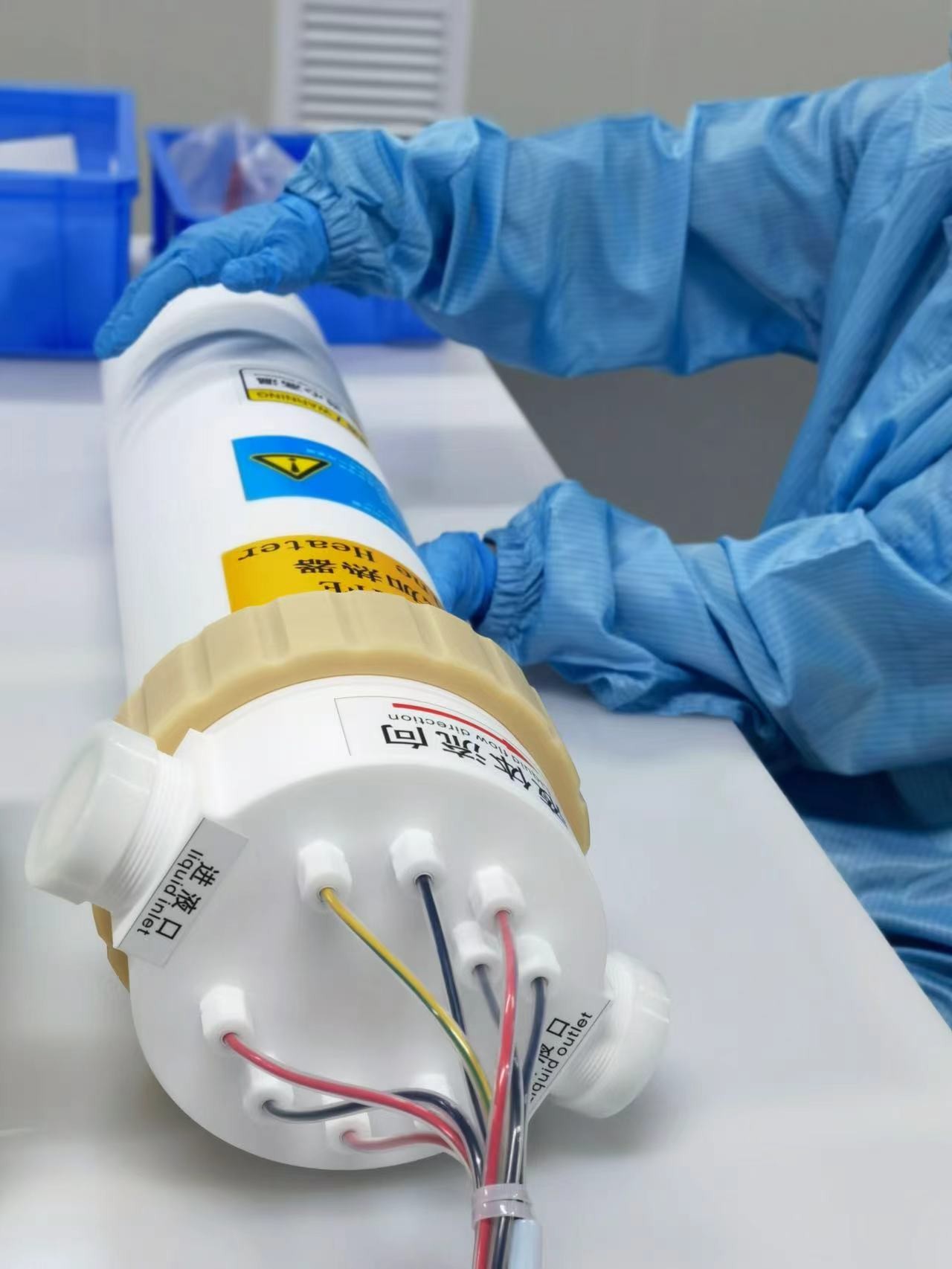

PTFE Fluoropolymer Chemical Heater

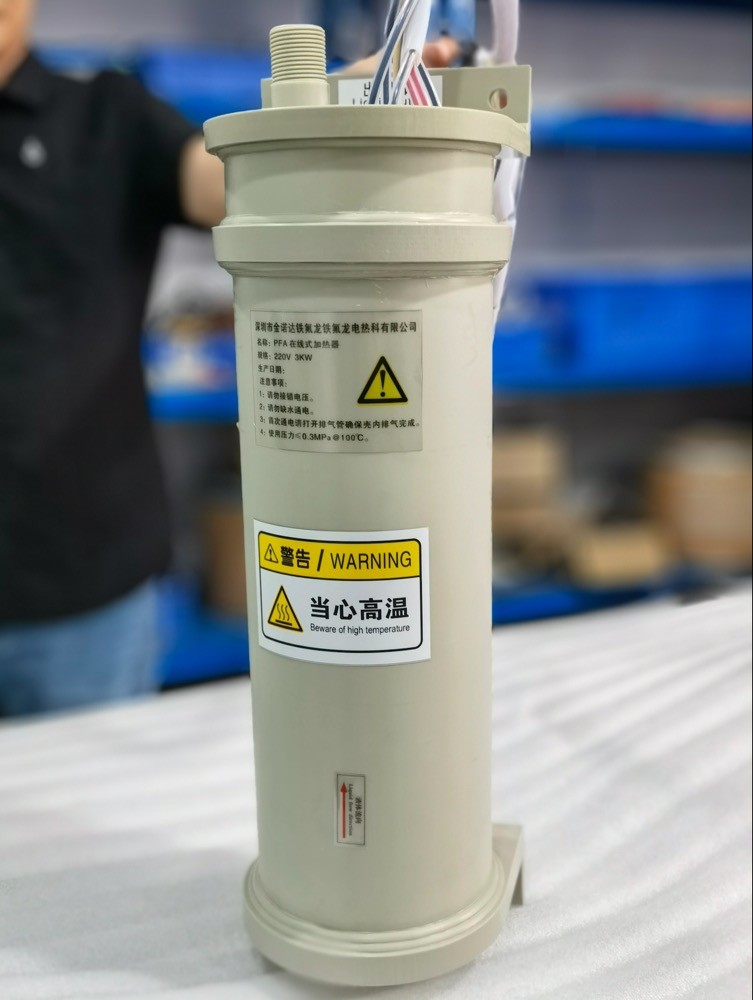

Inline fluoropolymer chemical heater

Semiconductor Wet Process fluid heater

Inline PTFE Fluoropolymer Chemical Heater For Semiconductor Wet Processes Images
