240V Or 480V 20A Digital Temperature Controller Unit With Thermistor

Name: 240V Or 480V 20A Digital Temperature Controller Unit With Thermistor
Brand: Precise Heater
Price: 200 USD

Buy cheap 240V Or 480V 20A Digital Temperature Controller Unit With Thermistor product

Brand Name : Precise Heater

Model Number : TPP102

Certification : CE,UL,CSA

Place of Origin : China

MOQ : 1 unit

Price : 200 - 1100 U.S Dollars

Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram

Supply Ability : 200 units per month

Delivery Time : 5 days

Packaging Details : Export Wooden Case

Specifications : Adjustable temperature range from -40°F(-40°C) to 999°F(538°C).

Thermocouple : Multi-input (Thermocouple/Pt100)

Input Sensor : PTFE-sheathed thermistor, 10 to 50 ft lengths available

Saftey Features : Pre-wired P1 terminal blocks,Non-volatile memory

Certifications : cULus

Contact Now

Digital Temperature Controllers unit-Digital Indicating Temperature Controller, 20A, with Thermistor

240V Or 480V 20A Digital Temperature Controller Unit With Thermistor

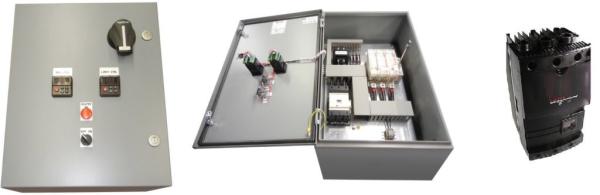

Any electrically heated container must be equipped with a thermostat and a level monitoring system. It is, however, often not possible to integrate all necessary components into a large control cabinet. Our solution – All components necessary for the safe operation of the heating system are contained in a light grey, glass fibre reinforced polyester enclosure (protection type IP 65). The control cabinet can be mounted with stainless steel mounting brackets onto a wall directly next to the container.

Specifications:

Input Sensor: PTFE-sheathed thermistor, 10 to 50 ft lengths available
Display: 0.56"-high LED display
Accuracy: ±1° full span, single-digit accuracy
Supply Voltage: 240V or 480V; contact us for more options
Operating Temperature: 20°F to 130°F (−6°C to 54°C)
Process Temperature: −58°F to 302°F (−50°C to 150°C)
Output: 240V or 480V, 1 or 3 phase, 20A relay
Weight: 16 lb (7.3 kg)
Approvals: cUL
Enclosure: NEMA 1, IP23

Dual Set-Point, 20 - 125 amps

Provides precise digital control for consistent plating and etch rates in most aqueous processes. Combination control features .3 inch (7.6mm), dual LED displays. Fluoropolymer (FEP) covered 10-foot 3m), 1000-ohm platinum RTD sensor included standard with the control. NEMA 1, IP21, flame retardant and gasketed plastic enclosure with stainless steel hardware. Dual setpoint with heating and cooling up to 30 amps. 120-240 volts. Single phase. Adjustable temperature range from -328°F (-200°C) to 4208°F (2320°C).

Safety Features

Pre-wired P1 terminal blocks

Non-volatile memory
Programmable high or low

temperature alarm output
Sensor short and break protection

Programmable high set point limit

Security code restricted menu
