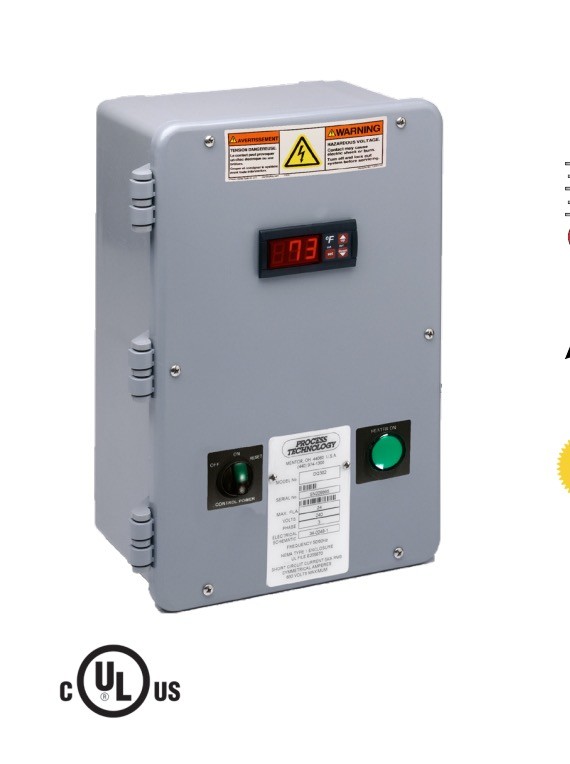

200-600V 80Amp Digital Indicating Temperature Control Unit With Thermistor

Name: 200600V 80Amp Digital Indicating Temperature Control Unit With Thermistor
Brand: Precise Heater
Price: 200 USD

Buy cheap 200-600V 80Amp Digital Indicating Temperature Control Unit With Thermistor product

Brand Name : Precise Heater

Model Number : TPP105

Certification : CE,UL,CSA

Place of Origin : China

MOQ : 1 unit

Price : 200 - 1100 U.S Dollars

Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram

Supply Ability : 200 units per month

Delivery Time : 5 days

Packaging Details : Export Wooden Case

Specifications : Adjustable temperature range from -40°F(-40°C) to 999°F(538°C).

Thermocouple : Multi-input (Thermocouple/Pt100)

Input Sensor : PTFE-sheathed thermistor, 10 to 50 ft lengths available

Saftey Features : Pre-wired P1 terminal blocks,Non-volatile memory

Max Amps. : 80 amps

Voltages : 200-600V avaiable

Contact Now

Digital Temperature Controllers unit-Digital Indicating Temperature Controller, 80A, with Thermistor

200-600V 80Amp Digital Indicating Temperature Control Unit With Thermistor

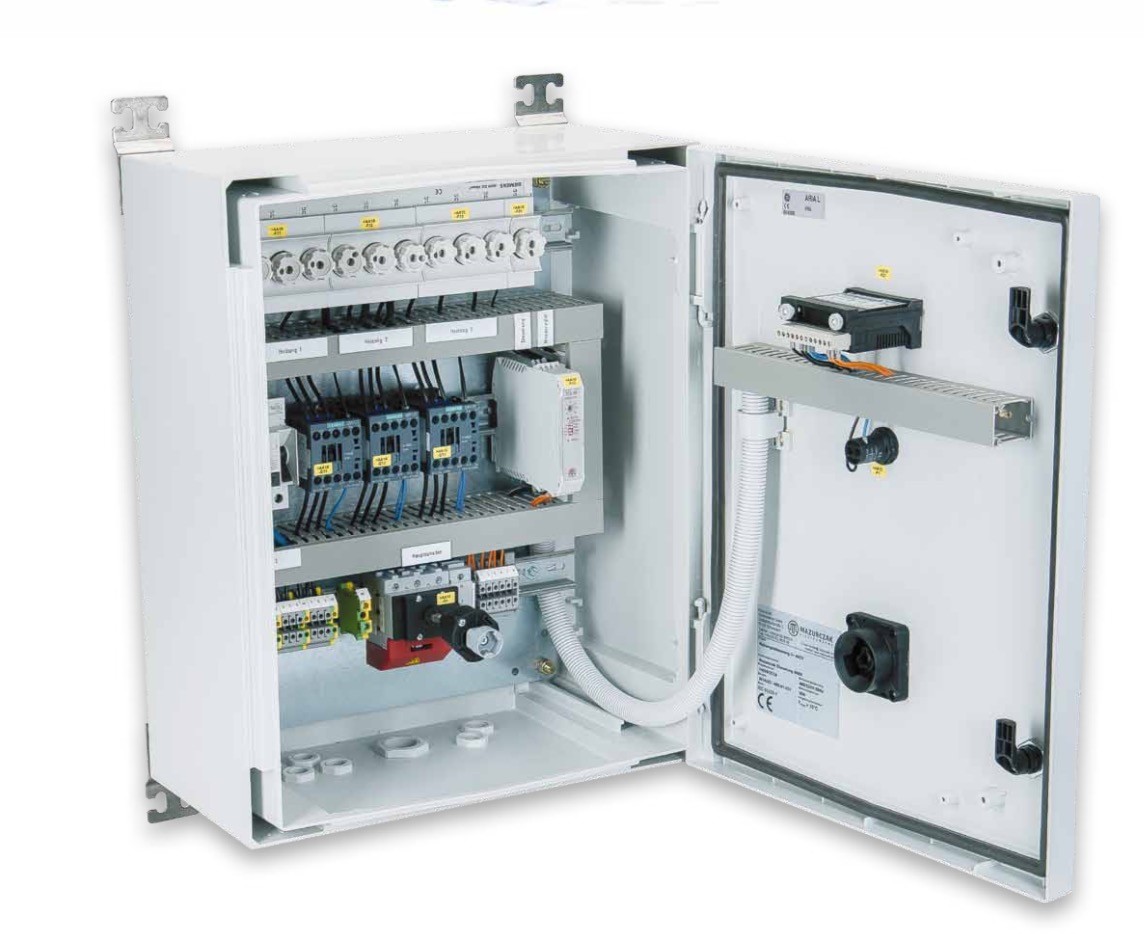

The cables and sensors of the heating systems are inserted into the control cabinet via cable glands situated at its base and are tightly wired at the clamping strips. A temperature probe with a Pt 100 sensor element must be connectedfor temperature control; a MTSufloating switch or alternatively a conductive NS 2 level rod probe must be connected for fluid level measurement.

A floating switch with an integratedtemperature probe (MTSt) or a level rod probe with an integrated temperature probe (NT 2) can of course be connected in place of indi- vidual sensors. The connection of a separate temperature probe is in this case not necessary.

Unused cable seals are closed with blind plugs.

When connecting single-phase immersion heaters use safety im- mersion heaters with an anti-burn system to improve the safety of the whole system. These immersion heaters have a temperature moni- tor built-in at their heating insert, which safely disconnects them at inadmissibly high immersion pipe temperatures (e.g. complete heating liquid loss).

Specifications:

Input Sensor: PTFE-sheathed thermistor, 10 to 50 ft lengths available
Display: 0.56"-high LED display
Accuracy: ±1° full span, single-digit accuracy
Supply Voltage: 240V or 480V; contact us for more options
Operating Temperature: 20°F to 130°F (−6°C to 54°C)
Process Temperature: −58°F to 302°F (−50°C to 150°C)
Output: 240V or 480V, 1 or 3 phase, 80A relay
Weight: 25 lb (11.3 kg)
Approvals: cUL
Enclosure: NEMA 1, IP23

Dual Set-Point, 20 - 125 amps

Provides precise digital control for consistent plating and etch rates in most aqueous processes. Combination control features .3 inch (7.6mm), dual LED displays. Fluoropolymer (FEP) covered 10-foot 3m), 1000-ohm platinum RTD sensor included standard with the control. NEMA 1, IP21, flame retardant and gasketed plastic enclosure with stainless steel hardware. Dual setpoint with heating and cooling up to 30 amps. 120-240 volts. Single phase. Adjustable temperature range from -328°F (-200°C) to 4208°F (2320°C).

200-600V 80Amp Digital Indicating Temperature Control Unit With Thermistor
