Immersion Heaters Temperature Controller System Overheat Temperature Protector

Name: Immersion Heaters Temperature Controller System Overheat Temperature Protector
Brand: Precise Heater
Price: 50 USD

Buy cheap Immersion Heaters Temperature Controller System Overheat Temperature Protector product

Brand Name : Precise Heater

Model Number : TCP1001

Certification : CE,UL,CSA

Place of Origin : China

MOQ : 1 unit

Price : 50 - 150 U.S Dollars

Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram

Supply Ability : 200 units per month

Delivery Time : 5 days

Packaging Details : Export Wooden Case

Specifications : 3 wires thermal protector

Guaranty : 12 months

Elements : Resistance Elements

Wires : 2,3 and 4 wires

Certifications : cULus

Contact Now

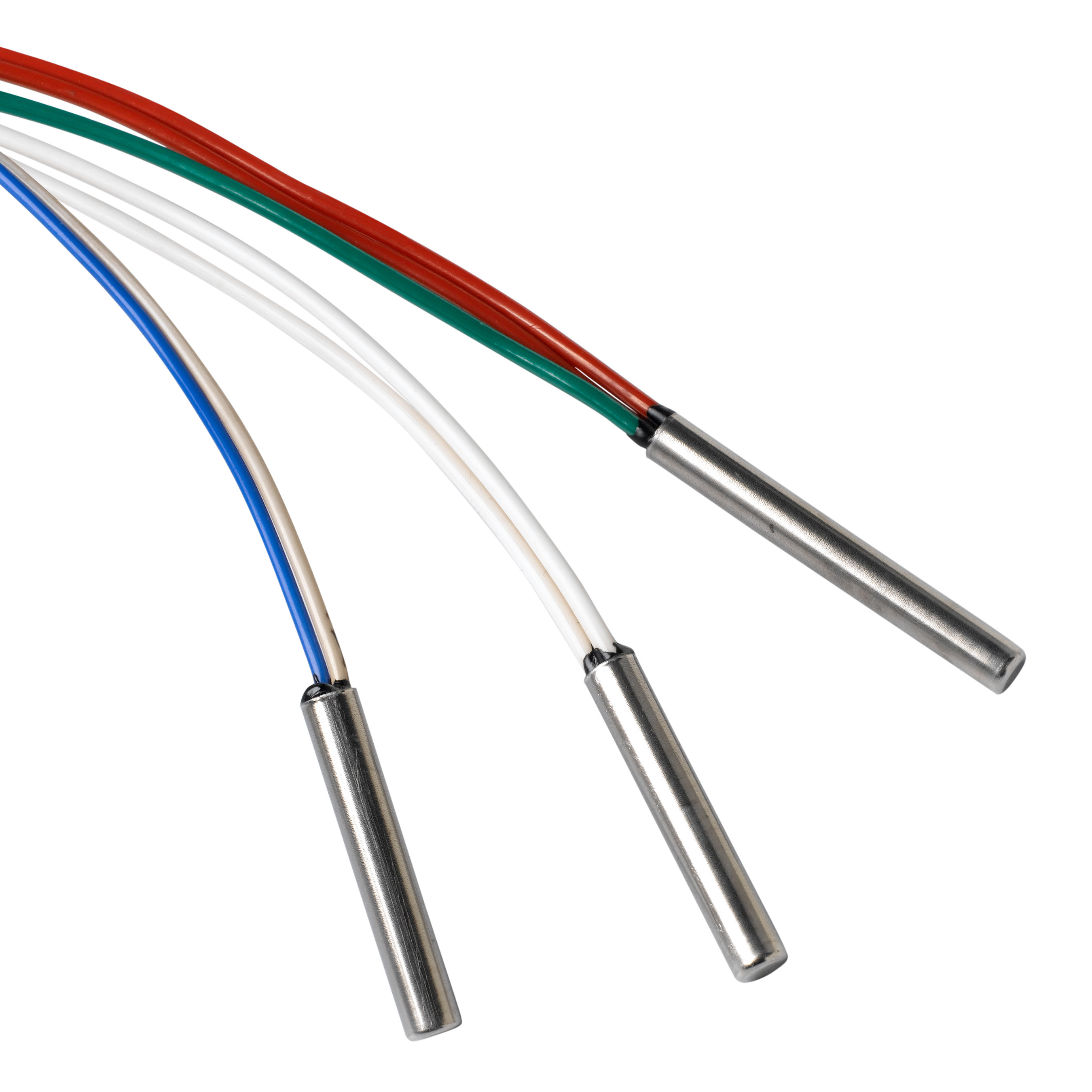

Over Heating Temperature Protectors for Electric Immersion Heaters

Immersion Heaters Temperature Controller System Overheat Temperature Protector

Temperature protection devices are used to protect internal circuits or devices from over heating. The resistance of Heating elements thermistorsrises rapidly when a certain temperature isexceeded, thus stopping the flow of current. This characteristic is self-regulating: Once the Temperature cools down, it permits the current to flow again.

1, 2, and 3 Series Protectors

Thermal overload protection

The Protector 1 overtemperature control system utilizes a heat sensitive fuse to detect overheat conditions. The protector, placed inside a thermowell, positioned in contact with the heater sheath, will cut power to the heater in the event of low liquid The Protector 2 and Protector 3 systems provide the same reliable overtemperature protection as Protector 1

However, the control systems feature a heat sensing thermostat. If the liquid level drops and the heater reaches a preset overheat heater can quickly be made operational by pushing the reset button on the control to restore power. Protector 3 is designed for flexible lead or high temperature fluoropolymer (PTFE) heater applications only.

REPLACEABLE THERMAL PROTECTORS
MODEL NUMBER	ITEM #	HEATER MATERIAL	HEATER STYLE	WIRE COLOR	TEMPERATURE RANGE	PRICE EACH
P1	6021-18-R	Metal	over the side	white	up to 180°F (82°C)
P4	6022-18-R	Metal	over the side	blue	180 to 230°F (82 - 110°C)
P5	6023-18-R	Metal	over the side	red	230 to 300°F (110 - 150°C)
P1	6021-85-R	Metal	L-shaped	white	up to 180°F (82°C)
P4	6022-85-R	Metal	L-shaped	blue	180 to 230°F (82 - 110°C)
P5	6023-85-R	Metal	L-shaped	red	230 to 300°F (110 - 150°C)
P1	6032-26-R	Fluoropolymer	over the side	red	up to 190°F (88°C)
P1	6032-48-R	Fluoropolymer	L-shaped	red	up to 190°F (88°C)
P1	6032-26-R	Quartz	over the side	red	up to 180°F (82°C)
P4	6033-26-R	Quartz/Fluoropolymer	over the side	blue	180 to 230°F (82 - 110°C)

RESETTABLE THERMAL PROTECTORS
MODEL NUMBER	ITEM #	HEATER MATERIAL	HEATER STYLE	WIRE COLOR	TEMPERATURE RANGE	PRICE EACH
P2	2804-18-R	Metal	over the side	white	up to 180°F (82°C)
P6	4047-18-R	Metal	over the side	blue	180 to 230°F (82 - 110°C)
P7	2805-18-R	Metal	over the side	red	230 to 300°F (110 - 150°C)
P2	2804-85-R	Metal	L-shaped	white	up to 180°F (82°C)
P6	4047-85-R	Metal	L-shaped	blue	180 to 230°F (82 - 110°C)
P7	2805-85-R	Metal	L-shaped	red	230 to 300°F (110 - 150°C)
P2	4575-26-R	Fluoropolymer	over the side	white	up to 190°F (88°C)
P8	5163-120-R	Fluoropolymer	over the side	brown	190 to 210°F (88 - 99°C)
P2	4575-48-R	Fluoropolymer	L-shaped	white	up to 190°F (88°C)
P8	5163-120-R	Fluoropolymer	L-shaped	brown	190 to 210°F (88 - 99°C)
P2	4575-26-R	Quartz	over the side	white	up to 180°F (82°C)
P6	5580-48-R	Quartz/Fluoropolymer	over the side	blue	180 to 230°F (82 - 110°C)	$70
