2KW To 18KW Baths Inline Fluid Heater PFA Immersion Frame Heaters

Name: 2KW To 18KW Baths Inline Fluid Heater PFA Immersion Frame Heaters
Brand: Precise Heater
Price: 3 USD

Buy cheap 2KW To 18KW Baths Inline Fluid Heater PFA Immersion Frame Heaters product

Brand Name : Precise Heater

Model Number : UPH2022

Certification : CSA,UL,CE

Place of Origin : China

MOQ : 1 unit

Price : US$3,000 - 9,000 / unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 units per month

Delivery Time : 15-25 days

Packaging Details : Export Wooden Case

Material : PFA/PTFE/PVDF

Color : White

Safety Features : Liquid level sensor,Ground wire options

Applications : Semiconductor,Life Sciences,Industrial

SPECIFICATIONS : 1,000 watts up to 30,000 watts

Voltages : 110 to 600 volts, single or three phase

Contact Now

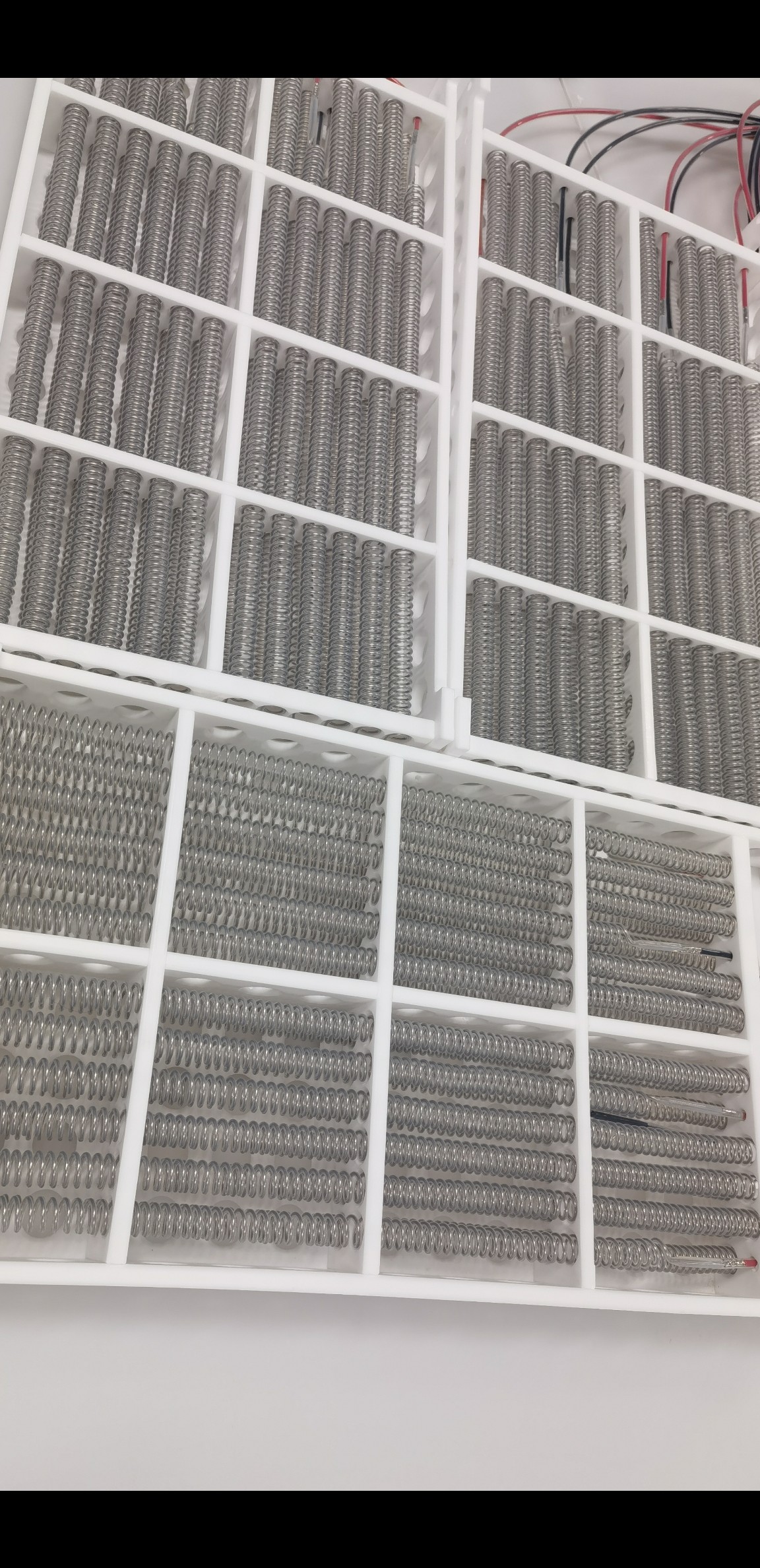

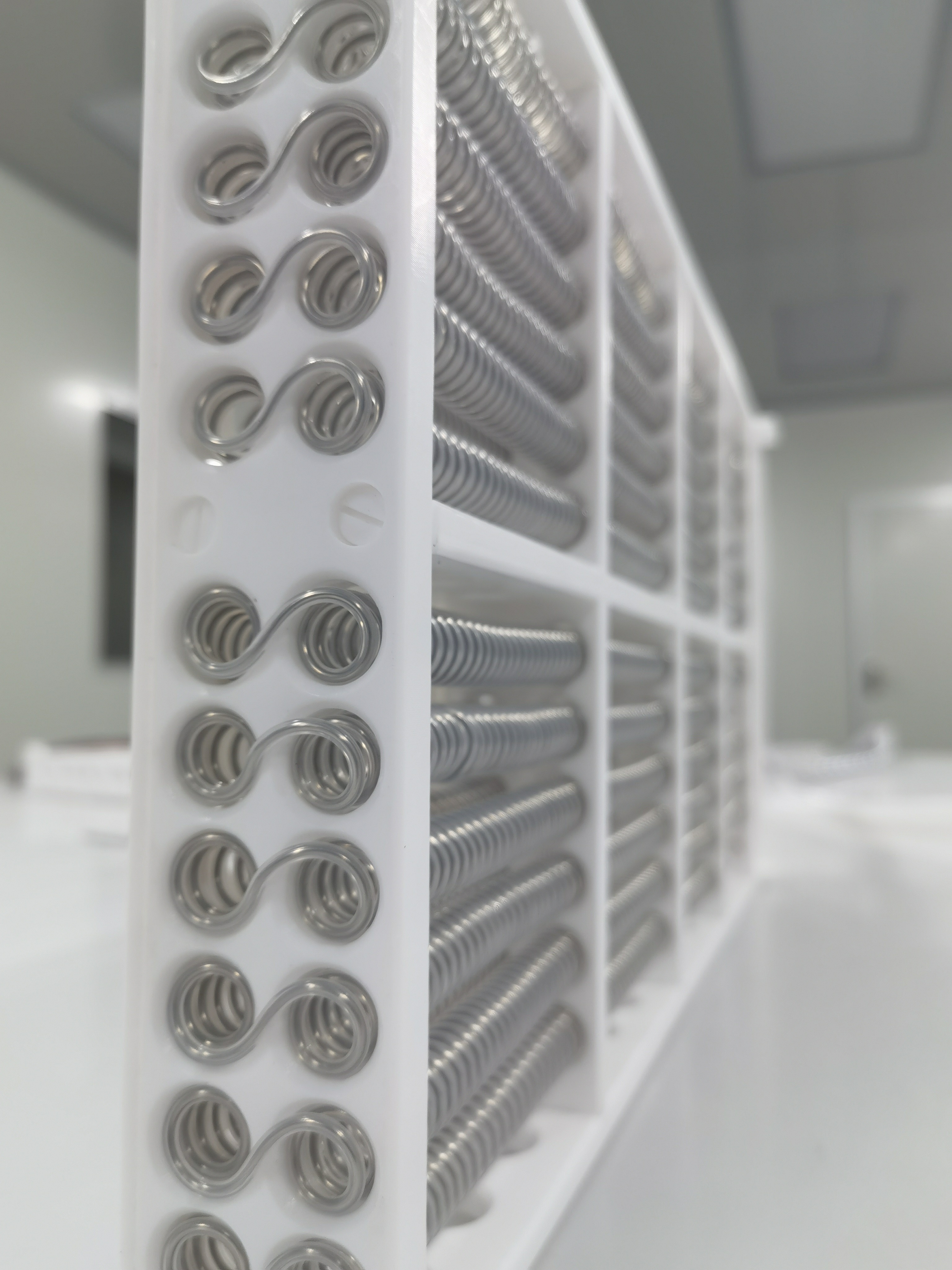

PFA Immersion Frame Heaters are great for heating fluid baths to a constant temperature

Markets

Semiconductor
Life Sciences
Industrial

Applications

Fluid Heating

Fluoropolymer Sleeve Heating Element Quality resistance element is sleeved in braided material for even coil separation. The entire element is given an outer sleeving of pretested and pre-extruded fluoropolymer tubing. THIS IS NOT A COATED PRODUCT.

Over-temperature Thermocouple The over-temperature cutoff device protects the integrity of the fluoropolymer heater. If an opera- tor should leave the heater on while draining or aspirating a tank, when used in conjunction with a temperature control device, it will automatically shut off the heater when it is exposed to air.

PRODUCT DESCRIPTION

Designed for the most demanding chemical applications and to provide years of trouble-free performance.

FEATURES
- Constructed with our exclusive elements for extended service life.
- High efficiency in a compact design, and an excellent alternative for replacing strip heaters on quartz tanks.
- TFP for bottom heater applications and inside tank wall requirements.
- All wetted parts are fluoropolymer and compatible with virtually any chemistry for unlimited process options. (Not to be used with flammable solutions.)
- Low watt density design promotes process temperature uniformity.
SPECIFICATIONS
- From 2,000 - 18,000 watts
- 120 to 600 volts, single or three phase
- Up to 10 watts per square inch (1.5w/cm2)
- Up to 130º Celsius (266° F). For higher temperatures, see Options section.
OPTIONS AVAILABLE (CONSULT FACTORY)
- .030 inch (0.76mm) thick sheath available for applications above 130°C (266° F) or for use with certain chemistries such as nitride etch or HF
- PID temperature control module
- Custom configurations and lengths
- Element gas purge flow regulator panel
- Bolt down feature

Watts	Voltage	Phase	Dimension(mm)	Model Number	SHIP Wt.(kg)
2000	120-600	Single or Three	300×150×40	TFP2-12	3.5
3000	240-600	Single or Three	350×180×40	TFP3-14	4.5
4500	240-600	Single or Three	450×200×40	TFP4.5-18	6
6000	240-600	Single or Three	600×250×50	TFP6-24	7
9000	240-600	Single or Three	750×350×50	TFP6-30	8
10000	240-600	Single or Three	800×450×50	TFP10-32	9
12000	240-600	Single or Three	900×500×50	TFP12-36	10
15000	240-600	Single or Three	1000×600×50	TFP15-40	11
18000	240-600	Single or Three	1100×700×50	TFP18-43	12
